Edgebander AURIGA 1308 XL: Highest Degree of Automation with three Finishing Units
Edgebander with efficient and automatic complete machining at a professional level while remaining compact and affordable.
Set-up processes with state-of-the-art NC servo-axes, making it unnecessary to open the machine hood. With the AURIGA 1308 XL (3 finishing units), HOLZ-HER has met this challenge. One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio.
Here is what the HOLZ-HER AURIGA series offers
- Invisible Joints with Glu Jet Thin Film Technology
- iTronic for intelligent automation
- Diamond Tipped Cutter as Standard Feature
- Automatic Complete Processing
- Workpiece Thickness up to 60 mm
- Edge Thickness up to 8 mm
iTronic for intelligent automation
iTronic operating components
1. Adaptive trimming blade
Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:
- Always the right pressure for different types of edging
- Prevents unnecessary vibration
- Reduces wear
2. Adaptive pressure unit
The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:
- Reduces reject quotas to a minimum
- Eliminate sample workpieces
- Optimum machining results even for continuously changing applications
3. Automatic glue quantity control
Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:
- Various types of panels, e.g. chipboard or MDF
- Various panel thicknesses
- Various feed rates
- EVA or PUR glue
- Adaptation to processing parameters for glue from different manufacturers
4. Automatic cleaning routine
Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time). Your advantages:
- Best system on the market
- PUR glue always under control
- Avoids errors during cleaning operation
5. Remaining glue quantity indicator
The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:
- Operator knows how many running meters can still be produced at all times
- Professional supervision of the cleaning process
- Optimization of remaining quantity of glue in system at time of cleaning process.

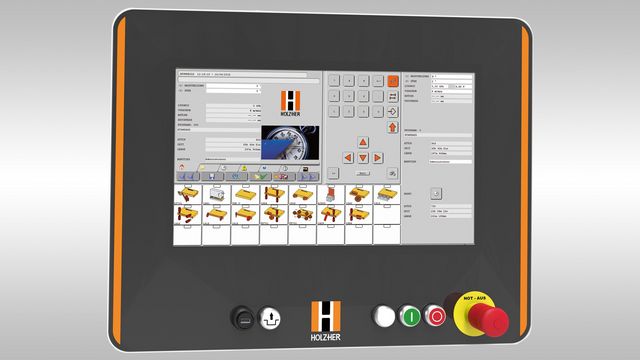

EdgeControl - simple and intuitive
18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.
- 18.5" touch screen color monitor - standard feature.
- Graphic user interface, all information displayed in plain text and/or graphic form.
- Simple operation – rotating and swiveling control panel at eye height.
- Programs are simple to call with program names and numbers.
- Large program memory for all desired applications.
- Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
- Service reports in clear text.
- Individual management for up to ten users with password protection and individual authorization.
- Network connectivity.
- Online maintenance, rapid exchange of data with HOLZ-HER service department.
- Barcode interface
Fully automatic, user-friendly feed of cut-length and coiled edging; conversion without tools. Gentle material handling with transport belts for edge feeding and light barrier for edging recognition.
Jointing cutter unit - 45 (60) mm
Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange. Including height adjustment for optimum utilization of cutters.
- Optionally available with working height of 60 mm.
The most flexible glue application system on the market
Heat-up, glue change and cleaning require only 3 minutes each
No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.
Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.
High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller with motor drive and pneumatic application control. Two subsequent pressure rollers.
Pneumatic trimming unit - 60 mm
For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.
Sawing motors each with two guides for precisely trimming off protruding edging.
Cutter unit - pivoting
Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-5 degrees. Including diamond tipped tools.
- Integrated chip collection in tool.
- ProLock system.
- Also available with four NC servo-axes
Copy cutter unit - 60 mm
Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.
- Diamond tipped tool for long service life.
- Integrated chip collection in tool.
Perfect finish – generous finishing area.
Flat scraper with plunge control
Perfect finishing – generous post-machining area for up to three finishing units (depending on model).
- The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.
Flat scrapers with pre and post-sensing
Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications. Can be selected optionally in lieu of the standard buffing unit.
Perfect finishing – generous post-machining area for up to three finishing units (depending on model).
- Polishing for maximum gloss; for complete finishing.

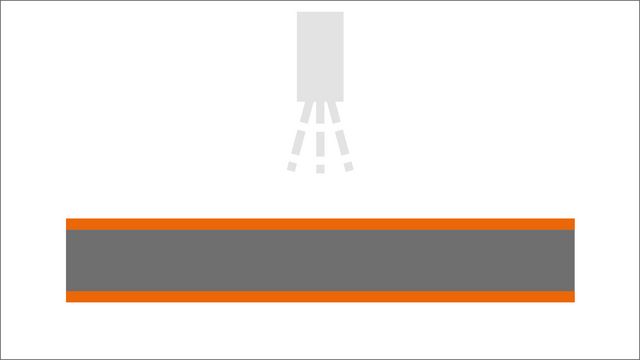

Front and rear spraying units
A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit (available as option for AURIGA 1308 XL).
Maximum Efficiency with Holz-Her Machine Networking
HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.
A strong team: The PRO-MASTER 7125 and AURIGA 1308XL
Craftsmanship at the highest level - This is the demand the Kindle Carpentry Shop in Lahr places on itself and has also actively pursued for over 85 years. The objective: Giving your home a vital quality to make you feel comfortable.
To continue to keep up with the state-of-the-art, the Kindle Carpentry Shop decided last year to purchase a PRO-MASTER 7125 CNC machining center from the machine manufacturer HOLZ-HER. Convinced of the quality of the 5-axis CNC machine, the company decided to also replace its UNO 1302 edgebander from HOLZ-HER, which has provided good service for many years, with a new AURIGA 1308XL from the same manufacturer. At this carpentry shop the PRO-MASTER and the AURIGA form a strong team for machining wood. The AURIGA 1308XL is a special type of edgebander, providing complete efficient and automatic machining while taking up a minimum of space in the workshop.
The Kindle Carpentry Shop produces residential furniture, kitchen and bath furnishings, staircases and much more while also offering expert presentations on subjects such as health and sleep. After 10 years of experience with this subject, the carpentry shop is an expert in this field and is pleased to offer professional sleep counseling. According to the motto “feel and try”, a sleep studio and functional model kitchens round out the carpentry shop’s extensive range.
The Kindle Carpentry Shop is now perfectly equipped to remain an excellent contact partner in the future for questions regarding ideas about furniture and luxurious interior furnishings in the vicinity of Lahr-Sulz.

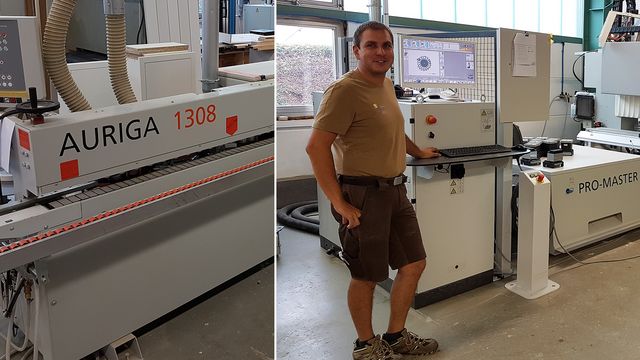

CNC and edgebanding for optimum results
The Wieland Carpentry Shop in Gernsbach is proud of its young, dynamic and competent team. In 2011 the carpentry shop decided to purchase an AURIGA 1308, from HOLZ-HER’s line of edgebanders. The AURIGA offers efficient and automatic processing of edging at a professional level while its compact design takes up minimum space in the shop.
Based on its positive experience with HOLZ-HER, the carpentry shop decided to invest in another HOLZ-HER machine in 2017. This machine was a 5-axis PRO-MASTER 7125 CNC machining center. This CNC machine offers virtually unlimited possibilities for machining wood, panels and synthetic materials. Above all, the mature dynamics of the gimbal mounted, 5-axis head distinguish this machine, making it perfect for meeting the demands of the carpentry shop.
Made to measure right down to the last detail
The Company “Massivholz-Möbel GmbH Riedinger” [Riedinger Solid Wood Furniture] in Bühl produces high quality, solid wood furniture to meet the desires and ideas of their customers. The company uses a number of various machines from HOLZ-HER. These include the AURIGA 1308XL edgebander as well as a 5-axis PRO-MASTER 7225 CNC machining center for production of furniture at the Riedinger Company.
The AURIGA 1308XL offers compact, but still extremely efficient, complete processing for edging with three finishing attachments. The PRO-MASTER 7225 CNC machining center offers the company innovative machine design with a range of performance including five interpolating axes to meet all production requirements.
Custom work right down to the smallest detail – with the HOLZ-HER machines now in use, this is more than just a motto for the Riedinger Company.

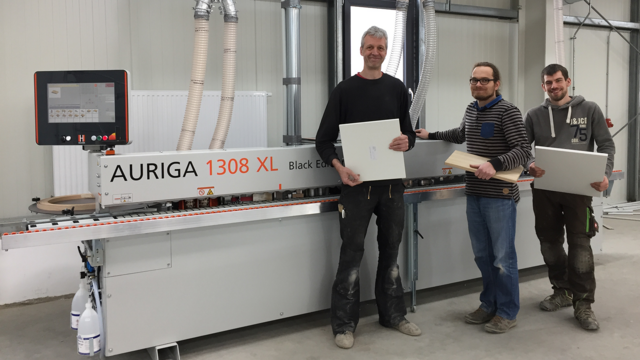

"Think thank" for tailor-made kitchen with perfect joints
The Marten Carpentry Shop in Emden serves as a think tank for its customers. This motto serves to describe the detailed discussions at the beginning of each consulting process. Topics include, for example, the degree of creativity permissible in designing the furniture and how problems can be solved in a spatial situation as well as to what extent the customer’s personal style can be integrated into the finished product. This extensive and qualified consultation at the Marten Cabinetmaking and Kitchen Workshop forms the basis for the company’s satisfied clientèle. This cabinet-making ship focuses on custom kitchens from planning to production of the furniture and furnishings.
Machines at the highest technological level as used to ensure perfect implementation. During the past few years the company’s success has resulted in continuous growth, making the present premises too small. For this reason the carpentry shop moved to a new production and presentation building. The front area contains a modern show room, while the rear area houses the new production facilities with the new AURIGA 1308 XL edgebander from HOLZ-HER, to meet the increasing customer demands for high quality edging and allow quick reaction. The AURIGA replaces its predecessor, a UNO 1302, and features programmed conversion at the touch of a button. In addition to the new AURIGA, a vertical HOLZ-HER panel saw has been in use for some time. With this equipment the Martin Carpentry Shop is perfectly equipped.
HOLZ-HER wishes great success at the new location.

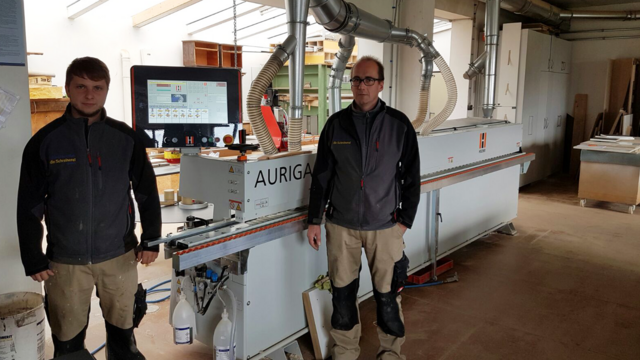

"We live for woodworking" - A Motto und now a machine that suits with it: The AURIGA 1308 XL
For 15 years, Michael Spitzmüller and Siegfried Klein have been successful in the woodworking industry. Besides high quality furniture the company also lays wooden floors and accepts every kind of wood and glas working. In 2016 the joinery decided to extend her machinery and bought an edgebander AURIGA 1308XL from the HOLZ-HER company.
One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio. Besides the Glu jet technology the AURIGA 1308XL also offers Set-up processes with state-of-the-art NC servo-axes, making it unnecessary to open the machine hood.
We wish the Spitzmüller and Klein joinery a successful work with the new machine.

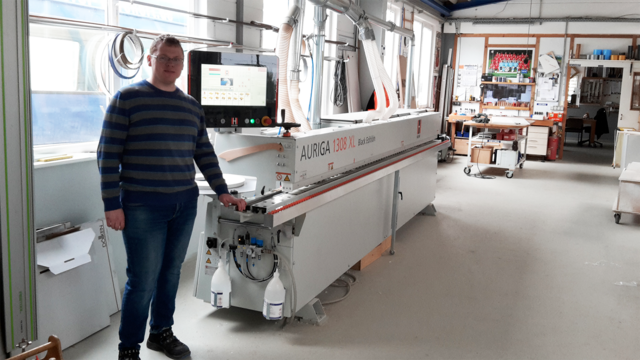

Convincing quality due to the AURIGA 1308XL from HOLZ-HER
In 1983 Mr. Bochert founded the Borchert joinery and since then, his know-how about woodworking increased. Since 2010 Michael Borchert assumes the responsibility for the family business. In 2016 the company decided to count on the experience and quality assurance of Holzher and invested in an edgebander AURIGA 1308XL.
One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio.

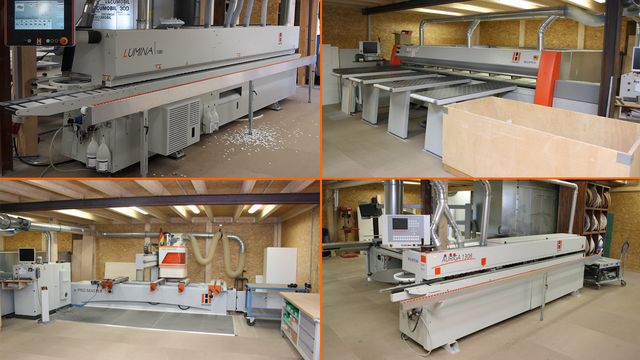

“Snooze à la Carte” with high quality water beds
The Kobe Carpentry Shop in Reutlingen has been a loyal HOLZ-HER customer for many years. This year, proprietor Michael Kobe and his team purchased a new LUMINA 1380 edgebander. Following an AURIGA 1308 edgebander, a PRO-MASTER 7018 CNC machining center and a CUT 6120 horizontal pressure beam saw this is the fourth machine from the quality manufacturer HOLZ-HER in Nürtingen. Master Carpenter Tobias Ernst is enthusiastic about the new high tech edgebander: The LUMINA has a change-over station to ensure perfectly invisible joints with laser edging as well as with PUR glue without requiring a great amount of time to change attachments.
This three-man shop in Reutlingen has specialized in building water and box spring beds. It has adopted the motto “Snooze à la Carte“. The carpentry shop works with a state-of-the-art measuring system to ensure custom sleeping comfort at the highest level. The components and frames are produced in the company’s own workshop to customer specifications. In addition to high quality beds, in the meantime the carpentry shop is now producing more and more exclusive bedroom furniture and interior finishing elements. The carpentry shop’s products can be viewed in their exhibition rooms in Böblingen and Reutlingen.
- Photos: Kobe Carpentry Shop

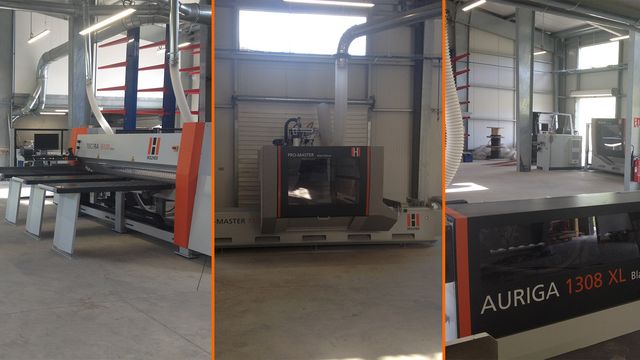

Caribbean Flair with high performance HOLZ-HER machines
