LUMINA 1375 multi edgebander: Multi-function milling technology – highly efficient and affordable

Edge banding machine LUMINA 1375 from HOLZHER - Laser edging and Glu Jet with PUR adhesive

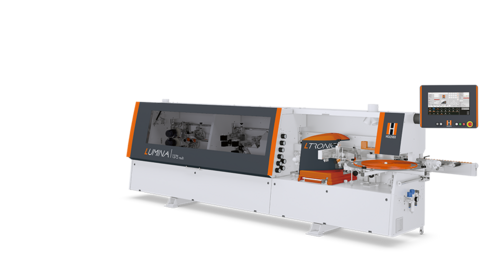

Your step up to high-end invisible joints: the LUMINA 1375 from HOLZ-HER.

Two ways lead to perfectly invisible joints - whether with the Glu Jet and waterproof PUR glue or with the LTRONIC and laser edging - the LUMINA technology makes both possible with minimum set-up work.

The LUMINA 1375 multi is completely equipped with multi-functional tools. This allows machining of various radiuses or applications with a 45° bevel at the touch of a button.

The LUMINA 1375 multi reduces your setup times enormously and even allows production of small lots at any time.

An 18.5 inch touchscreen with wide-screen format allows selection of the specific profile on the multiple stage diamond tool and the unit is automatically guided into the starting position.

The single motor shaping mill is equipped with an NC servo-axis for optimization of various profiles. Reduced setup times, always excellent quality and enormous variety are natural features of this machine.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER LUMINA series offers

Here is what the HOLZ-HER LUMINA 1375 multi offers

Technical Details

iTronic for intelligent automation

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Adaptive pressure unit

The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:

  • Reduces reject quotas to a minimum
  • Eliminate sample workpieces
  • Optimum machining results even for continuously changing applications

3. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

4. Automatic cleaning routine

Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market
  • PUR glue always under control
  • Avoids errors during cleaning operation

5.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

fa.s.t. setting technology

fa.s.t. setting technology

fa.s.t. or "setup in the gap" is one of the major themes for efficient edging operations. fa.s.t. enables you to run different machining processes at the same time on the edgebander. For example, it is possible for the operator to switch on the corner rounding unit intelligently, without having to empty the machine for the set-up procedure.

Edge Control

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface.

SYNCHRO edging feed

SYNCHRO edging feed
SYNCHRO edging feed
SYNCHRO edging feed

SYNCHRO edging feed

The edging magazine with synchro-drive. With its synchronous adaptation to the feed rate, this edging magazine guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Small feed angle thanks to nozzle design - easy feeding of solid wood edging up to 15 mm.

Jointing cutter

Jointing cutter
  • Including height adjustment for optimum utilization of cutters.

LTronic - laser edging change-over unit

Ltronic laser edgebander - perfect invisible joints with laser edging
Ltronic laser edgebander - perfect invisible joints with laser edging
Ltronic laser edgebander - perfect invisible joints with laser edging

LTronic laser edgebander

The LTronic laser edgebander was developed especially for the LUMINA series and processes all edging with functional layer on the market. Two different NIR modules are available for processing laser edging:

  • NIR module for edge heights up to 23 mm (standard)
  • NIR+ module for edge heights up to 45 mm (optional)
    (NIR = Near Infrared Radiation)

Switch it on and it's immediately ready for use – the new Ltronic unit does not require a heat-up time or any heat-up phases during the machining process. In addition, the complete system operates absolutely silently which is a clear advantage for the user compared to other systems. Moreover, cleaning costs are minimal. The integrated protective plate on the NIR module needs to be briefly cleaned just once per week.

A highlight is the edging library completely integrated into the control. All of the very latest co-extruded and subsequently coated edging are already stored here as a factory-provided item and can be simply selected by the user via the standard touchscreen. Each laser edging needs a specific energy entry, which, by way of an example, depends on the edge thickness or the color. After the selection is made, Ltronic automatically adjusts the respective energy requirement. HOLZ-HER takes perfect care of all of that with its edging library.

Glu Jet automatic - change-over gluing station

Heat-up, glue change and cleaning require only 3 minutes each

Automatic replenishment



  • The pressure cylinder presses the cartridge or granules against the heater elements. After reaching a certain position, the sensor sends a replenishment signal to the control. As long as glue is being applied to a workpiece, charging is delayed until the work is finished. The pressure cylinder retracts automatically, a new cartridge or fresh granulated material is gravity fed from the cartridge supply shaft into the heating chamber where it is again pressed against the heating elements.
  • Purging hole for automatic cleaning system – e.g. cleaning out PUR glue.

The Glu Jet automatic is attached to a set-up carriage alternating with the LTronic unit as a glue application system with automatic change-over. Change-over is accomplished within a maximum of two minutes by a high precision interface with HSK chuck and CNC technology.

Motor-driven pressure unit

Pressure unit with synchronous drive and automatic adaptation to feed rate
Pressure unit with synchronous drive and automatic adaptation to feed rate

Pressure unit with synchronous drive and automatic adaptation to feed rate. Straight and tapered pressure rollers for perfectly glued joints.

  • With NC servo-axis for motorized adjustment to specific edge thickness (optional).

Pneumatic trimming unit

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Cutter unit multi

Multiple cutter unit
Multi milling aggregate for the Sprint 1327 multi

On the inside, the LUMINA 1375 multi operates with assemblies using play-free mechanical systems and high precision, fully digital NC servo-axes, guaranteeing precise positioning with 100% repetition accuracy. An 18.5 inch touchscreen with wide-screen format allows selection of the specific profile on the multiple stage diamond tool and the unit is automatically guided into the starting position.

Copy cutter unit - 60 mm multi

Corner copier unit  for corner processing up to 3 mm edge thickness
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Including NC servo-axis for fine adjustment for varying profile thicknesses
  • Diamond tipped tools for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

Scraper unit multi

Multiple scraper unit
Scraper aggregate multi for the perfect smoothing of radii and chamfers on plastic edges with two profiles.

For perfect smoothing of radiuses and chamfers on plastic edging with two profiles. The unit operates with assemblies using play-free mechanical systems and high precision, fully digital NC servo-axes, guaranteeing precise positioning with 100% repetition accuracy. An 18.5 inch touchscreen with wide-screen format allows selection of the specific profile on the multiple stage tool and the unit is automatically guided into the starting position.

Flat scrapers (application controlled)

Surface scraper (use controlled)

Clean post-processing of surfaces. Application controlled with 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Spraying devices

Front and rear spraying units
Front and rear spraying units

Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles - for a perfect edge finishing (optional).

Buffing unit

Polishing for maximum gloss
Polishing for maximum gloss

Polishing for maximum gloss; for complete finishing. Standard setup.

  • Also available as oscillating version (optional)
