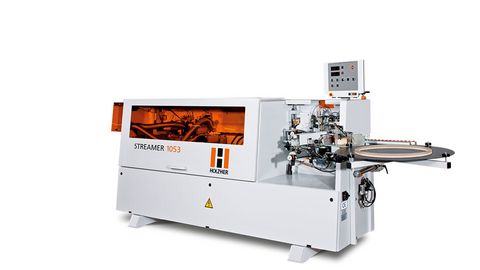

HOLZ-HER Edgebander STREAMER 1053: Your compact start with HOLZ-HER edging technology

The edge banding machine Streamer 1053 from Holzher offers the ideal entry in edge processing

The edgebander compact class from HOLZ-HER with the designation STREAMER 1053 offers top edgebanding up to 60 mm and perfect finish. This edgebanding machine fits anywhere 3.9 m of space are available.

The edgebander STREAMER 1053 offers a gluing station, pressure unit, trimming unit, multifunction cutter unit and alternatively two finishing units consisting of radius scraper, flat scraper and buffer.


Here is what the HOLZ-HER STREAMER series offers

Here is what the HOLZ-HER STREAMER 1053 offers

Technical Details

We know what you need: The HOLZ-HER control

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

Too bad everything is not as easy to operate as our HOLZ-HER controls.

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

  • The HOLZ-HER GluJet system is equipped with precise temperature control for glue application over two heating circuits.
  • Simple edge feeder switch-over from cut-length to coil edging.
  • Trimming unit can be pivoted pneumatically with control panel (optional feature).
  • Selection switch for optional flat scraper (ON/OFF).

Edging feed

Edging feed
Edging feed

Fully automatic, user-friendly feeder for coiled edging as well as single strip feeder. Gentle material handling with transport belts for edging transport and automatic edge recognition.

An edging separator is available (as an option) for practical processing of packages of edging strips.

The most flexible glue application system on the market

GluJet - The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Invisible joints with PUR glue, which can also be used in wet areas, are an obvious choice for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit
Pressure unit

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller motor-driven, two subsequent pressure rollers.

Pneumatic, application-controlled pressure unit (optional).

Trimming unit - 45 (60) mm

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; unit to be pivoted manually to10 degrees, single motor.

  • Optionally available with 60 mm working height, pivots pneumatically.
    High quality version with stable cast stand and two sawing motors each on two guides.

Cutter unit

Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 6 mm, radiuses up to 3 mm.
Including quick adjustment flush / radius as well as diamond tipped tools.

Scraper unit for perfect finishing

Scraper unit
Scraper unit

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses and chamfers on plastic edging.
  • Available as options

Flat scraper with plunge control

Flat scraper for HOLZHER Streamer 1057 XL for perfect finishing
Flat scraper for perfect finishing on Streamer 1057 XL edgebanders

Perfect finish – generous finishing area.

  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit (optional)

Buffing unit
Buffing unit

Perfect finish – generous finishing area.

  • Polishing for maximum gloss; for complete finishing.

Options for extension

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References

Perfect edgebanding in minimum space

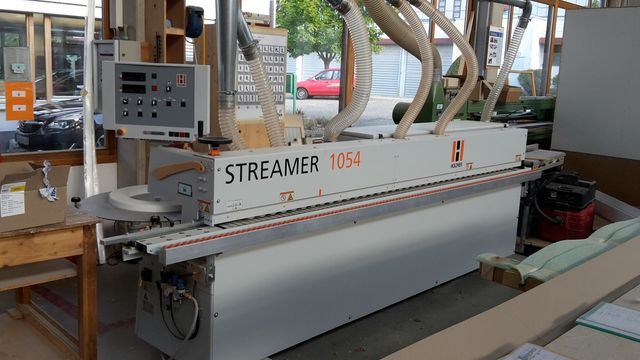

Reference Streamer 1054 edgebander from HOLZHER

The Biersack Carpentry and Glazing Shop in Lörrach has been using its STREAMER 1054 edgebander for furniture production since the middle of 2016.

This long-standing company has been in business for 50 years during which it as gained the experience and quality standards to satisfy numerous customers with its own products.

Its two primary competencies using wood and glass have resulted in production of primarily windows and doors in the past. However, since more and more satisfied customers have started demanding interior finished work, the management of the Biersack Carpentry Shop decided to purchase a STREAMER 1054 from HOLZ-HER to allow greater focus on this area.

The advantages of this compact edgebander are obvious: While requiring minimum space, it provides exceptional results using waterproof PUR glue from HOLZ-HER, thus representing the perfect entry-level machine for the company.

Further images

Positive feedback on Streamer edgebander from reference customer Biersack

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

STREAMER Series Brochure (PDF, 2 MB)

Technical data

Open table
