HOLZ-HER DYNESTIC 7515 | 7516: Efficient nesting with high potential for automation

CNC Nesting technology from HOLZ-HER - for perfect and high-quality results

Your solution for custom production for specific customers - even for small lots. Perfect nesting and cutting technology with mature software for rectangular and free-form nesting. Our unique high-flow nesting table offers extremely high suction forces for your workpieces.

With the DYNESTIC 7515 | 7516, HOLZ-HER provides modern production shops with the perfect entry into nesting technology. The welded machine frame, ground and hardened prism guides and the stable stands ensure a high level of manufacturing precision even in long-term use and with high loads. The DYNESTIC 7515 and 7516 are available with practical machine lengths up to 6,405 mm in the X direction. The dimensions for the machining fields in the Y direction are up to 1,561 mm.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER DYNESTIC 7515 | 7516

Technical Details

"BetterNest" - the optimum nesting software

Innovative operator software for optimized cutting and processing
Innovative operator software for optimized cutting and processing
Innovative operator software for optimized cutting and processing

Innovative operator software for optimized cutting and processing

The increasing popularity of nesting technology as a combined cutting and CNC processing solution for large quantities of panels has also increased the requirements placed on the nesting software. For this reason, HOLZ-HER offers the "BetterNest" software as an auxiliary module for the CAMPUS / NC Hops software for the functional nesting machining centers in the DYNESTIC series.

This module is available for pure rectangular nesting or as a free-form version with a completely new type of algorithm offering never-before-achievable nesting results with cutting losses far below that obtained with conventional nesting software. In combination with its simple operation in spite of its enormous versatility, it significantly facilitates programming for users in the office and on the machine while ensuring maximum process reliability.

CabinetControl - for programming your furniture simply

Simple furniture programming
The high quality, user-friendly machine control from HOLZ-HER
Generates CNC machining program automatically at the touch of a button

CabinetControl – software for simple furniture designing

Our high quality, user-friendly HOLZ-HER machine control system is an integral part of the machine’s design. The equipment package includes CAMPUS / NC Hops with office and machine license and full-fledged aCADemy CAD software. The integrated CabinetControl Base furniture design software rounds out this premium package. This offer provides the prerequisites for effective machining and convenient operation with barcode interface, manual control unit, import features and much more.

  • CabinetControl Base included as standard feature in software package.
  • Design of furniture.
  • Views can be represented in 2D or 3D.
  • Quick adaptation to individual desires of furniture buyers.
  • Perfect presentation of furniture.
  • Automatic completion of cutting plans.
  • Generates CNC machining program automatically at the touch of a button.
  • An optional professional version, the CabinetControl PRO, is also available with library, calculation, data transfer to pressure beam saws, etc. Also ideal for planning kitchens and rooms.

CabinetControl Pro - Perfect 3D room planning with cabinet generator

Cabinet Control Pro - Perfect 3D room planning with cabinet generator
Cabinet Control Pro - Perfect 3D room planning with cabinet generator
Cabinet Control Pro - Perfect 3D room planning with cabinet generator

CabinetControl Pro is the extension for professional use in furniture planning and customer presentation. Plan furniture or design entire living situations. Support your customer's imagination for faster decisions. Present the planned furniture photorealistically from any perspective directly to the customer on site.

Furniture

  • Plan your furniture in different room situations: Wardrobes, pitched roof cupboards, dormer cupboards, kitchens, bathroom furniture, office furniture, wardrobes, sliding door cupboards, living room furniture, sideboards, built-in cupboards, hi-fi and TV furniture, counters, beds, tables, etc.

Simple

  • As a carpenter, you know how furniture is made. With just a few entries, you can go directly to the finished planning without any CAD knowledge at all. From there it is just a push of a button and all data is ready for production. This way you can quickly and easily get to the planning and work preparation stage.

Planning

  • Together with your customer you plan and present your furniture quickly and vividly. You implement any spontaneous change request directly and your customer immediately knows exactly what he is getting. This makes his decision easier and you will get your order more quickly.

The cutting data and the CNC programs for your HOLZ-HER panel saw and the HOLZ-HER CNC machine are automatically generated with the planning. The additional option TrunRAY perfects the display of the created renderings.

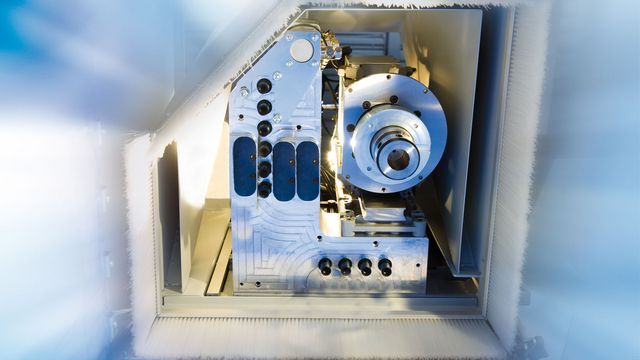

Machining head - perfect nesting results

Powerful cutter units with excellent performance curve

High speed nesting with powerful cutting spindles

Precise cutting spindles with ceramic bearings ensure optimum cutting results. Whether with 11 kW (air or liquid cooling) or 16 kW (liquid cooling) for extreme cutting performance, HOLZ-HER offers the ideal spindle for your range of applications.

The DYNESTIC is perfectly equipped with variable drilling heads.

10-Spindle version (standard)

  • Drilling unit with 10 vertical spindles (X = 6 / Y = 4)
  • Grooving saw in X direction (optional)
  • The optional pressure booster provides even more power for the drilling unit

14-Spindle version (optional)

  • Drilling unit with 10 vertical spindles (X = 6 / Y = 4)
  • Four horizontal spindles (one double drilling spindle in X direction / one in Y direction)
  • Grooving saw in X direction (optional)
  • The optional pressure booster provides even more power for the drilling unit

24-Spindle version (optional)

  • Drilling unit with 18 vertical spindles (X = 11 + 2 / Y = 6)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction)
  • Integrated grooving saw in X direction
  • The optional pressure booster provides even more power for the drilling unit

Highly flexible nesting table

High-Flow Nesting Table - Nesting Technology for rational production
High-Flow Nesting Table - Nesting Technology for rational production
High-Flow Nesting Table - Nesting Technology for rational production

High-flow nesting table

Nesting technology for rational production. With the nesting process, a porous protective panel – usually a thin MDF panel – is held down on the machine table by a vacuum. It provides a large surface for suction and serves to support the workpieces to be processed. Nesting technology allows optimized processing and cutting of panel materials.

  • For formatting nesting cutting plans on the nesting table.
  • Workpieces can be processed with manually positioned suction cups.
  • The HOLZ-HER nesting table has small matrix dimensions – of only 50 mm – to ensure maximum vacuum flux over the entire table surface.

TouchLabel - overview of labels

TouchLabel - the perfect solution for labeling
TouchLabel - the perfect solution for labeling

TouchLabel - the perfect solution for labeling

The 21,5" touch screen provides a perfect overview of the nesting results. Simply tap the workpiece and the label printer included in the package prints out a self-adhesive barcode label.

The integrated CAMPUS module label printer allows printout of normal text as well as barcodes (barcode and 2D data matrix). Naturally, your barcode labels can be adapted to your specific requirements with the label template editor.

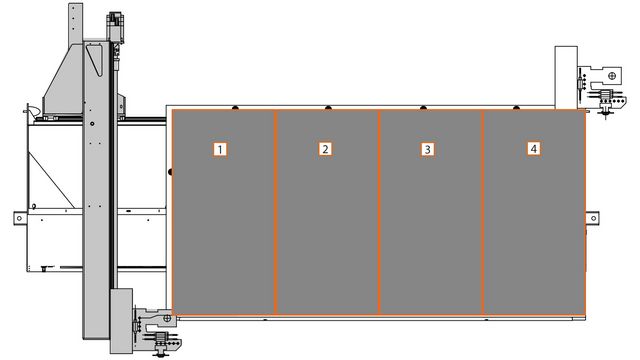

Multiple circuit vacuum systems

Flexible vacuum zones for variable panel sizes

Flexible vacuum zones for variable panel sizes

The optional multiple circuit vacuum systems offer the possibility of subdividing the nesting table into various vacuum zones with the control. This feature makes it possible to choose between 2-field, 4-field and 8-field solutions.

Ideal for adapting the machining table to various workpiece sizes with simultaneously optimized vacuum.

Efficient vacuum technology

Extremely powerful and efficient vacuum pumps
ECO VAC

Extremely high performance, efficient vacuum pumps ensure workpiece is held securely. These low maintenance, dry-running pumps are also distinguished by their low noise emissions and extremely low maintenance requirements.

Moreover, our intelligent ECO VAC vacuum control uses a software program to ensure that the required vacuum power is always present when several pumps are used.


Technical Details

An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more
