CNC machines for solid wood and panels: CNC machining solutions to make you even more potent in competition
Investments in state-of-the-art CNC machines are worthwhile. Furniture and components even with complex designs can be produced economically and precisely. Latest generation control technology, drives and software ensure virtually unlimited possibilities. CNC machines designed for efficient and accurate machining of solid wood, panels, windows and doors, composite material and aerospace.
Awake the potential of the CNC machines of the PRO-MASTER series. The CNC-machining centres are distinguished by their solid design and maximum flexibility. Every PRO-MASTER is preconfigured at the factory for your special range of applications to ensure that you can always count on its comprehensive standard equipment.
The 5-axis PRO-MASTER CNC machines offer state-of-the-art CNC technology for cutting 3D contours. The software provided with the machine provides an open interface for transfer of complex 3D data via postprocessors from leading CAD / CAM software providers. The 5-axis PRO-MASTER series provides extremely short feed and acceleration values. The unique 17 kW cutting spindle with PRO-TORQUE technology turns the HOLZ-HER 5-axis CNC machine into true power packages for machining operations with highest processing quality.
CNC machines PRO-MASTER 70 series
Professional CNC technology for universal machining
- CAMPUS Machine Control
- With 3 or 4 Interpolating Axes
- Effective Machining Height up to 180 mm
- Machining in X Direction: Up to 5,340 mm
- Machining in Y Direction: Up to 1,287 mm

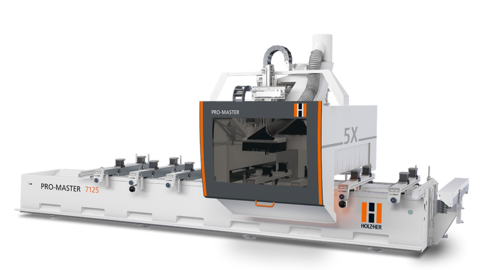

HOLZ-HER PRO-MASTER 71 Series
Unlimited possibilities for machining wood and plastic
- CAMPUS Machine Control
- With 4 or 5 Interpolating Axes
- Effective Machining Height up to 210 mm
- Machining in X Direction: Up to 5,420 mm
- Machining in Y Direction: Up to 1,400 mm

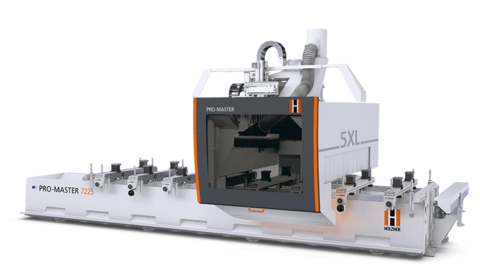

CNC machines PRO-MASTER 72 series
Masters extreme machining dimensions perfectly
- CAMPUS Machine Control
- With 4 or 5 Interpolating Axes
- Effective Machining Height up to 300 mm
- Machining in X Direction: Up to 7,220 mm
- Machining in Y Direction: Up to 1,600 mm
Professional brand presentation for professional machines
The ARNO Company with headquarters in Wolfschlugen, near Stuttgart, provides for brand presentation at the point of sale – aesthetic, discerning, attractive and efficient. Over 80 years of experience and more than 250 dedicated employees worldwide make this company an expert for all branches in all store, shop in shop, display and digital areas. The complete range includes design, value engineering, construction and production right on up to logistics and installation. The company coordinates complex international projects of all sizes for multinational brands and commercial enterprises.. ARNO is a global player with certified processes and a clear objective: To create worlds for experience, providing purchasing motivation. The ARNO Group includes the headquarters in Wolfschlugen near Stuttgart as well as other companies in Munich, Bristol, Istanbul, Moscow, Guangzhou, Shanghai and a strategic alliance in New York.

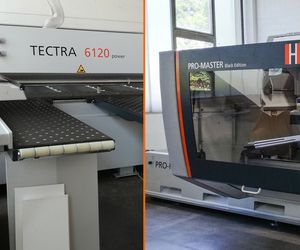

Since the end of April two new machines, one PRO-MASTER 7125 5-axis CNC machine and one TECTRA 6120 pressure beam saw from HOLZ-HER have been in use at ARNO in their technical product preparation, prototype design and production departments. After detailed market analysis and comparison, they discovered the machines from HOLZ-HER satisfied the company’s high expectations and requirements for machining their wide range of production. In addition to the excellent price/benefit ratio, the decision makers at the company were also convinced by the proximity to the manufacturer as well as the support in disassembling the old machines and installing the new. After comprehensive training, the first orders were produced on the new machines to the full satisfaction of the company. Peter Köstlin, Team Leader fir Technical Pre-Production, is enthusiastic about the new machines: “It is simply a lot of fun to work with these new machines and continuously discover new possibilities.”
Maximum flexibility using proven processes

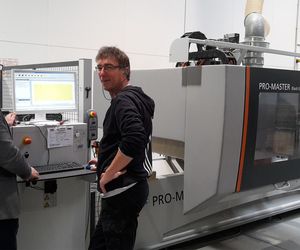

OWB is an innovative, non-profit organization in the social field, offering jobs for people with handicaps. The organization would like to offer everyone with a handicap a job, which they enjoy and for which they are ideally suited. OWB’s utmost priority is to foster the entire personality of each individual effectively. The employees are introduced to normal, everyday work under realistic working conditions.
Woodworking is one of the most popular fields of work at OWB. Use of a natural material like wood makes the employees enthusiastic and allows the workshop to offer jobs with highly varying demands, offering the ideal area of activity for each individual. The new HOLZ-HER PRO-MASTER 7018 provides perfect support for the staff at the OWB woodworking shop. With its four interpolating axes, the machine facilitates the work considerably. For OWB employees the regulated processes make them particularly compatible for handicaps. The new CNC machining center therefore offers the advantage of integrating maximum flexibility into the existing operating processes.
The employees at the OWB workshop produce, above all, products related to the subjects of modernization / presentation. This product line has been on sale for several years now at the OWB online shop. Among others they sell a modular kit for psychologist, the so-called Inszenario® set This is thoroughly tested, highly effective communication medium to help make fundamental, interpersonal psychological problems visible as an initial step in finding a solution. The range also includes a moderation case produced of native beechwood. All products are top grade and very popular.
“Snooze à la Carte” with high quality water beds
The Kobe Carpentry Shop in Reutlingen has been a loyal HOLZ-HER customer for many years. This year, proprietor Michael Kobe and his team purchased a new LUMINA 1380 edgebander. Following an AURIGA 1308 edgebander, a PRO-MASTER 7018 CNC machining center and a CUT 6120 horizontal pressure beam saw this is the fourth machine from the quality manufacturer HOLZ-HER in Nürtingen. Master Carpenter Tobias Ernst is enthusiastic about the new high tech edgebander: The LUMINA has a change-over station to ensure perfectly invisible joints with laser edging as well as with PUR glue without requiring a great amount of time to change attachments.
This three-man shop in Reutlingen has specialized in building water and box spring beds. It has adopted the motto “Snooze à la Carte“. The carpentry shop works with a state-of-the-art measuring system to ensure custom sleeping comfort at the highest level. The components and frames are produced in the company’s own workshop to customer specifications. In addition to high quality beds, in the meantime the carpentry shop is now producing more and more exclusive bedroom furniture and interior finishing elements. The carpentry shop’s products can be viewed in their exhibition rooms in Böblingen and Reutlingen.
- Photos: Kobe Carpentry Shop
Complete, integrated solutions from HOLZ-HER
Pulsar is a marketing agency seated in Dubai, and offering its customers holistic marketing concepts. The agency was founded in 2007 and has a regional as well as global presence with production capabilities in Dubai and Beirut.
The basic idea is to create brand awareness to win customers for a brand particularly at the point of sale. For this purpose the agency offers integrated marketing concepts, including everything customers require for comprehensive brand awareness ranging from shop design to digital marketing, events and promotions.
Since February 2016 the company has used machines from the quality manufacturer HOLZ-HER for production of high quality store furniture elements for the point of sale. A STORE-MASTER panel storage system was installed in combination with a DYNESTIC 7521 nesting machine and a TECTRA 6120 pressure beam saw. Moreover the company operates successfully with a PRO-MASTER 7125 5-axis CNC machining center as well as an ACCURA series edgebander from HOLZ-HER for realization of its innovative store concepts.
Among others Nestlé, Unilever, Procter & Gamble, Nike, Burberry and BMW are included among the highly satisfied clientele in the Arabian world, who are impressed by Pulsar’s promise of quality as a result of its investments in high quality production machines.
Caribbean Flair with high performance HOLZ-HER machines
HOLZ-HER’s excellent reputation as a producer of high performance machines has reached the Caribbean. On the small Caribbean Island of Saint-Barthélemy, belonging to the lesser Antilles and included in the French overseas territories, the new production facilities built by the Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has been equipped with machines from the Nürtingen machine manufacturer.
These machines include a PRO-MASTER 7125 Black Edition, distinguished particularly by the mature dynamics of its 5-axis gimbal-mounted head and high tech processor. In addition the carpentry shop now has an AURIGA 1308XL PUR Black Edition with three finishing attachments. A TECTRA 6120 classic pressure beam saw was also installed.
The Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has specialized particularly in production of interior and exterior furniture and is now well equipped with its new HOLZ-HER machine park.
HOLZ-HER product portfolio as central production pillar
Binni is one of the leading companies in the Republic of Kosovo in the area of interior furnishings such as doors and windows. Over 200 employees work in a production area of 18,000 m2 with a capacity of more than 10,000 doors per year as well as over 5,000 kitchens per year. Every year more than 50 new product are introduced on the market. The company exports to various European countries such as Switzerland, Germany, Belgium or the Netherlands.
Binni was founded in 1989 and represents the continuation of a family tradition. The business model combines traditional Albanian wood and furniture craftsmanship with innovative processes and technologies meeting international standards.
This international standard is guaranteed by use of highly varying HOLZ-HER machines, for a majority of the company’s production. In addition to two horizontal panel saws, the company uses a vertical EVOLUTION 7405 CNC and a PRO-MASTER 7125 CNC machining center. A SPRINT 1327 edgebander is also in use. The HOLZ-HER machines are a significant production factor, which have become indispensable for this major company’s everyday business.
The video pictured shows an except from Binni’s image video. The complete video can be view at the Binni Youtube Channel.
High quality Russian work supported by HOLZ-HER
HSR is one of Russia’s leading manufacturers of furniture and interior furnishings. The company’s headquarters is in Khimki, located to the north of Moscow. From here the company manages seven other branch facilities in Russia. The range of materials to be processed is broad, going from solid wood, artificial stone and veneer to synthetics and laminate chipboard. This high quality Russian manufacturer focuses on production of equipment for offices and retail stores as well as residences and hotels.
In the area of furniture and interior furnishings HSR has made a name for itself and has more than enough well known references for proof. The company’s satisfied customers include LG, Swatch, Apple, Louis Vuitton and World Disney as well as Procter & Gamble. From planning to custom production the company supervises its customers, ensuring optimum quality from design to complete functionality.
For its precision, high quality work, the company uses machines form the Swabian quality manufacturer HOLZ-HER. The machines in use include a 5-axis PRO-MASTER CNC machining center and an AURIGA 1307 XL edgebander.
The video shown is an excerpt from an image video made by HSR. The complete video can be viewed at the HSR Company website at
The 5-axis machine from HOLZ-HER was an absolutely great decision
Max’s Furniture Workshop is a carpentry shop specializing in construction of furniture and interior furnishings. Two years ago, the 10-man company managed by Maximilian Sammer took a step typical today: They invested in a machining center. In the meantime they know: “The 5-axis machine from HOLZ-HER was an absolutely great decision.”
Profitable production. After working with the Pro-Master 7125 for two years, Sammer is convinced today: “The decision we made was absolutely right”. In addition to daily work, this is demonstrated by special applications such as building solid wood shelves for wine bottles, produced in the form of a wooden disk with concave fillets centered around the middle. A cylinder in the center of the disk was drilled to fit the bottle necks. “The 5-axis machine allowed us to cut the individual concave fillets as well as produce the cylinder with a minimum of work”, explained Schwarzmeier. “With any other machine we would have needed an angle attachment again.”
In his opinion this is also one of the greatest advantages of the 5-axis machine: You save tools and angle attachments. As planned. And beside that the machining work is a great deal faster today. “We used to have to put a part through a machine with one tool three or four times. Today we do everything in one pass”, he asserted. “Production of parts, for which we had to construct templates, used to require a great deal of time. Today we have them finished in a wink of the eye. And the precision is even better!”
The higher performance of the machining center has allow Max to take a great step forward in the production of interior doors as well. “We don’t build standard doors, we provide custom solutions: flush with the wall, large surface, with Tectus hinges”, continued Sammer. “The 7125 makes it easy. And the handling is also greatly improved: We used to have to carry the door back and forth. Today we set it on the machine once. Then it is sanded and painted. Finished.”
In the meantime it is also considerably easier to produce parts damaged during installation or with flaws. “These parts are already programmed, so the 5-axis machine gives us a gigantic advantage”, confirmed Sammer. “All totaled, we produce our parts more profitably today. Previously, when we produced a kitchen on conventional machines, the follow-up calculation usually turned out very poor. Now with CNC our profitability has increased considerably.
5-axis CNC machine: Maximum precision with HOLZHER
The company Ebert Schreinerei & CNC-Technik in Heilbronn has been a convinced HOLZ-HER customer for many years. Even before the carpentry shop started using the new PRO-MASTER 7125 5-axis machining center in 2013, a 7123 CNC machine from HOLZ-HER was already in use.
This is one of the reasons why the present 5-axis CNC machine forms the basis for daily machining work on various materials.
At the Ebert Carpentry Shop the main work consists of milling, drilling, grooving and sawing to format. Another basic competency is setting angular cuts at the many required angles on the state-of-the-art 5-axis CNC machining center, which allows maximum machining precision. Examples are furniture parts, door fronts and shelves as well as complete cabinets. Moreover the CNC machine also allows production of samples. The carpentry shops range of work also includes generation of free shapes as well as interior and exterior radiuses with maximum geometric precision.
All series and single parts are produced on the 5-axis CNC machining center. Processing includes the following types of materials:
- Wood materials
- Solid wood
- Composite materials
- Mineral materials
- Various plastics and synthetic materials
The CNC milling equipment ensures reproducibility and subsequent production at any time - an advantage the Ebert Carpentry Shop appreciates greatly.
Edgebanding, CNC & complete machine united in production
The Henss Interior Finishing Company in Feldkirch, better known as AUF&ZU (OPEN&CLOSE), is a satisfied HOLZ-HER customer, and, in the meantime, uses a majority of the production machines from the traditional manufacturer in Nürtingen.
The brand AUF&ZU is the result of decades of experience in interior finishing work. Starting with sliding doors, the idea was transferred to cabinet design. The cabinets have become rooms, where every inch of the room is used for a practical purpose. The AUF&ZU systems are planned to meet specific needs and visually matched to the tastes of the customer - without being subject to any limitations in design. Over 60 years of experience in the branch, has resulted in know-how appreciated by many regular customers.
All of the company’s products are produce in their own shop. Since 2013 AUF&ZU has used HOLZ-HER machines for its production. Products already installed include a PRO-MASTER 7225 5-axis machining center as well as an EVOLUTION 7405 vertical CNC machining center for complete machining of all types of work. In addition to CNC machining, the company also used edgebanders from HOLZ-HER. Currently the predecessor model of the ACCURA is installed: an ARCUS 1334.
HOLZ-HER machines represent everything important for the AUF&ZU Company: Precision work, state-of-the-art engineering and use of European products, to produce high quality, enduring products for the customers.
Exceptional master piece with HOLZ-HER machines
The Feine Möbel Carpentry and Furniture Making Shop in Guntersblum, Germany, works under the motto “A warm, friendly residential atmosphere is always the interaction of its many parts”. It is therefore important to encourage customers to realize their own ideas and support them with maximum professional competency in designing their home while providing them the necessary craftsmanship.
For perfect production of the furniture, the company uses a CUT series horizontal panel saw, a PRO-MASTER CNC machining center and a SPRINT series edgebander, all from HOLZ-HER. With these HOLZ-HER machines, the carpentry shop has ensured maximum quality and precision for its customers since 2003.
In addition to handling customer orders, the carpentry shop’s junior proprietor used the HOLZ-HER machines to produce his masterpiece for the Master Carpenters’ School in Schwetzingen, Germany. This masterpiece is a piece of corridor furniture made of elm wood with painted finish and printed glass inserts. The original character of this masterpiece resulted in its inclusion in the Online Portal of the Cabinet Maker and Carpentry Shop Magazine, BM Online.
- BM Online | March 8, 2016
Photos: Jörg Beltzner, Schwetzingen
Read complete article at BM Online
HOLZ-HER PRO-MASTER with convincing features

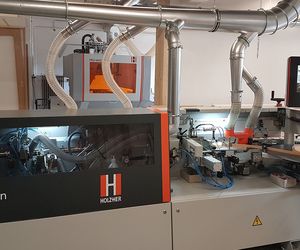

Beginning immediately the Kindle Carpentry Shop in Lahr, Germany will use a PRO-MASTER 7125 from HOLZ-HER for its production.
The company produces residential furniture, kitchen and bathroom furnishings, stairs, windows, nursery school equipment and furnishings for commercial facilities and wine cellars and much more.
Craftsmanship at its highest level - is the company’s own objective which the Kindle Carpentry Shop has adhered to for over 80 years .
HOLZ-HER wished maximum success with the new machine.
State-of-the-art wood processing with digital CNC technology
Politics as well as the chamber of commerce support innovate craftsmanship in Sachsen-Anhalt
State-of-the-art wood processing with digital CNC technology
Digital control for machining materials and in construction processes is advancing with increasing perfection. Particularly middle sized companies remain competitive and gain market advantages though use of CNC technology. This was demonstrated by the visit of Sachsen-Anhalt’s Minister of Economic Affairs, Hartmut Möllring, at the cabinetmaking shop of Rainer Böhme in Sangerhausen near Halle on January 20, 2016. Here politics and the chamber of commerce are cooperating in a common initiative to put public focus on innovative companies. The heart of production at Böhme is the PRO-MASTER 5-axis CNC machining center from HOLZ-HER.
The visit at the Böhme Cabinetmaking Shop was the kickoff to a series of events for strengthening all 14,700 handicraft business in the chamber region of Halle/Saale. One of the messages for the structurally weak, one-time mining region: Industry 4.0 leads to success in medium sized craft shops. An innovative spirit and good financial planning make the investment in CNC machining for derived timber products profitable very quickly.
“In the ever-tightening European competition, start-of-the-art technology secures advantages for companies; But the link between traditional craftsmanship and state-of-the-art technology in our crafts shops makes the decisive difference”, emphasized Thomas Keindorf, President of the Halle/Saale Chamber of Commerce. This is something Master Cabinetmaker Rainer Böhme has already recognized: “In the past few years we have examined the requirements of our customers precisely and determined that, in spite of IKEA and similar retailers, customers want personal consultation.“
Stylish, custom craftsmanship
Rainer Böhme’s Cabinetmaking Shop has a staff of twelve specializing in high standard interior finishing as well as construction and repair of staircases in addition to producing doors and windows. Here customers receive comprehensive consultation considering all aspects of preserving historically valuable features and other local stylistic elements - particularly in combination with restoration and other types of work in older homes. Investment in a digital machining center was particularly advantageous for such high quality areas with many custom requirements.
The final choice was a PRO-MASTER 7125 5-axis CNC machining center from HOLZ-HER. This acquisition has made it possible completely digitize nearly all production processes today. The cabinetmaking shop - founded in 1993 on the grounds of a one-time shift installation for the local mining company - thus became a pioneer in the process of increasing digitization, which has had a tremendous impact on this traditional craft.
More powerful, faster all rounder with five axes
HOLZ-HER promises PRO-MASTER 7125 users “virtually unlimited capabilities” for machining wood and synthetic materials. And the performance spectrum of this 5-axis power package is laid out for higher-than-average loads. Highly dynamic drives and control technology go beyond simply brilliant results, providing users with extreme acceleration values - and all this on a machining surface with optional dimensions from 3,620 to 5,420 mm (X axis) and machining depth of 1,350 mm (Y axis), which can be reached with all drills and attachments. The working height of 210 mm from the top of the suction cups is enormous and, according to the manufacturer, unique in this class. The large Z stroke of 565 mm is extremely well suited for use of long tools making the cutter unit highly flexible for universal applications.
“Edge processing, grooving, cutting and drilling - for example in stair steps or risers - are all finished completely in one work process”, explained Martin Johannes Diebes. The master cabinetmaker at Böhme operates the PRO MASTER and writes the CNC programs. The “Campus” software package integrated into the PRO MASTER is a versatile and user-friendly CNC program licensed for use in the office as well as on the machine, with CAD module and versatile macros to facilitate programming. Furniture parts as well as construction elements such as doors and windows can be programmed easily including all parameters with just a few mouse clicks.
Optimum cutting results at maximum speed
The version of the “CabinetControl” software provided by HOLZ-HER for use in the office as well as on the machine, ensures easy design of cabinets and everything else imaginable. And even the standard version of Campus with the “Academy” module offers a complete CAD program. The Campus software also offers an open interface for connection to other three-dimensional CAD/CAM programs from other leading manufacturers as well as complex 5-axis machining operations. The optional “CURVE-3D performance package” ensures optimum dynamics, best cutting results and maximum machining rates for cutting curves and three-dimensional shapes.
The Böhme Cabinetmaking Shop works with special staircase construction software from the DDX Company. For staircase work a digital measuring system is also used, allowing the data to be processed directly by the design software. “This saves us a great deal of complicated work at the construction site with templates and such”, Rainer Böhme reminisces on previous times. Digital production made it possible for us to complete a luxurious spiral staircase in a public building in Cologne with platforms and a total of 60 steps in only three weeks.
Three-dimensional process simulation
When producing individual components such as stairs or risers, the CNC processing steps an be checked with the PRO MASTER in advance on the large 19” monitor using three-dimensional process simulation. An automatic positioning feature for the consoles takes care of the preparation work for the machine table and provides additional operational reliability. An optional ceiling laser allows the position of all suction cups to be displayed in one step for optimum fixation of the work.
A large number of suction cups and variable frame clamps on the PRO MASTER ensure easy handling of highly varying workpieces. The drilling head is available with 16 spindles (standard) or 24 spindles (optional) for variable hole patterns. Both drilling units are equipped with integrated grooving saw. The tool sequence is optimized automatically by the machine software. And a traveling disk tool changer for 18 tools as well as the short clamp-to-clamp time make flexible work very easy with the PRO MASTER even with the basic equipment. Moreover up to 76 additional tool locations are offers depending on the application.
- by Uwe Steinmeyer
Success with the 5-axis PRO-MASTER 7125
The Matt Furniture Making Shop produces customer furniture for private and corporate customers. The performance range includes complete interior finishing such as built-in cabinets, counters, shelves and bathroom furniture. The company’s quality standards for material and craftsmanship have satisfied its customers for many years.
To maintain these quality standards in the technical equipment as well, the Matt Furniture Making Shop uses a CNC machining center from HOLZ-HER. In addition to the 5-axis CNC PRO-MASTER 7125 machining center, the company is also proud of its AURIGA 1308 XL edgebander.
