Beam saw and horizontal panel saw: High-performance panel cutting technology by HOLZ-HER
Beam Saws and panel saws from HOLZ-HER combine precision technology with intelligent handling solutions for effective and precision panel cutting. These pressure beam saws are distinguished by their powerful performance packages. Nevertheless, they are very compact allowing use even in shops where work areas require extremely economic planning. Nevertheless their cutting performance is far beyond standard. The cantilever, torsionally rigid design of the base frame as well as the high quality equipment guarantee constantly precise cutting results at maximum performance volume - a hallmark of HOLZ-HER horizontal panel saws.
The heart of any pressure beam saw is the sawing unit. Designed for high cutting lengths and extremely high feed rates, these machines are available in the performance range up to 25 kW. These are the ideal cutting centers for individual panels and stacks with thicknesses of 50 to 120 mm.
The control is decisive for the power output of a state-of-the-art panel saw. HOLZ-HER's high performance, practice-proven CUTCONTROL 2 takes over control. The preinstalled EASY-PLAN and OPTI-CUT software ensures uncomplicated management of your jobs and materials as well as optimization of your cutting plans on the machine. You can also select additional optional features for perfect work preparation in the office.

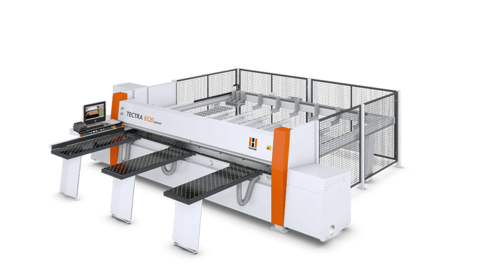

Beam saw TECTRA 6120 Series
ZENTREX 6215 Series Panel Saws
The power package among the HOLZ-HER pressure beam saws
- Laser supported positioning system
- 2-stage evacuation management system
- Intelligent Clamps
- Double Angle Presser
- Professional Software Package
Beam saws ZENTREX 6220 Series
CNC technology for maximum sawing performance
- Professional Software Package
- Intelligent Clamps
- Double Angle Presser
- Security Package - for safe operation
- 10 Year Guarantee on All Linear Guides
The Slovakian Company Tomko swears by HOLZ-HER
Since 1989, the Slovakian Company Tomko has been manufacturing mass-produced furniture from laminated and veneered panels. The present production capacity and the company’s know-how are a guarantee for all business partners, who expect delivery and installation of high quality furniture at agreed times and quantities as well as flexibility in satisfying additional requirements.
Moreover, the furniture making shop provides its customers modern, cost-effective household furnishings tailored to their expectations by using custom processes and professional consultation during the furniture planning and production phases.
The company’s demanding projects are made possible by its state-of-the-art machinery. The TECTRA 6120 panel saw from HOLZ-HER is ideal for fulfilling the customers’ specific requirements. In addition, the cabinet making shop has a SPRINT 1329, also from the brand-name manufacturer HOLZ-HER. This machine was designed to meet the highest requirements in terms of quality and flexibility and offers many advantages. Among other things, the machine can be converted by program selection, without having to open the hood, so that it is always ready for production immediately. An EVOLUTION 7405 vertical CNC machining center completes the company’s excellently equipped machine pool.
From planning and consultation to production, delivery, assembly and service, the TOMKO Cabinet Making Shop is a reliable partner for high quality furniture.
Photos and Video: Nábytkové stolárstvo TOMKO
HOLZ-HER and Zottler: Styrian Connection
The Zottler Cabinet Making Shop in Styrian, Austria, handles all types of classic construction and furniture making work. Their operations depend on machines from HOLZ-HER for universal applications.
[...] As a master cabinet maker, Zottler builds high quality furnishings for residential dwellings, hotels and restaurants as well as complete furnishings for retirement and nursing homes and student dormitories for customers in Austria, Germany and Switzerland. “Recently we just completed 250 kitchens as well as the complete room furnishings for student dormitories in Graz’s CoolCity [...] For the team with its 48 employees working like a small industrial mass-production shop in two-shift operation, failure of a machine would be disastrous. During the last 5 years a great deal of time has been spent developing efficient processes and a bundle of money invested in state-of-the-art machines to ensure that these processes run smoothly.
What brought you to HOLZ-HER? Zottler: "After the initial period nearly ten years ago, we were confronted with the decision whether to spend a lot of money to convert the old panel saw or just buy a new one right away. We made a foresighted decision. An existing contact recommended HOLZ-HER. And ever since that time, Zottler has invested regularly in new machines from the plant in Voitsberg, which is only an hour’s drive, “because when it comes to our essential machines, we only want one company to contact, who needs to be in the vicinity and offer true Austrian quality.” And if things ever get really critical, interjected Peter Gadi, Regional Sales Manager at HOLZ-HER and responsible for the projects at Zottler, we send a service technician to Passail immediately to solve the problem.
The extensive machine park from Holz-Her, now in use at the Zottler Cabinet Making Shop, covers all processing steps for mass-produced furniture, thus ensuring continuous work flow: [...]
Professional brand presentation for professional machines
The ARNO Company with headquarters in Wolfschlugen, near Stuttgart, provides for brand presentation at the point of sale – aesthetic, discerning, attractive and efficient. Over 80 years of experience and more than 250 dedicated employees worldwide make this company an expert for all branches in all store, shop in shop, display and digital areas. The complete range includes design, value engineering, construction and production right on up to logistics and installation. The company coordinates complex international projects of all sizes for multinational brands and commercial enterprises.. ARNO is a global player with certified processes and a clear objective: To create worlds for experience, providing purchasing motivation. The ARNO Group includes the headquarters in Wolfschlugen near Stuttgart as well as other companies in Munich, Bristol, Istanbul, Moscow, Guangzhou, Shanghai and a strategic alliance in New York.
Since the end of April two new machines, one PRO-MASTER 7125 5-axis CNC machine and one TECTRA 6120 pressure beam saw from HOLZ-HER have been in use at ARNO in their technical product preparation, prototype design and production departments. After detailed market analysis and comparison, they discovered the machines from HOLZ-HER satisfied the company’s high expectations and requirements for machining their wide range of production. In addition to the excellent price/benefit ratio, the decision makers at the company were also convinced by the proximity to the manufacturer as well as the support in disassembling the old machines and installing the new. After comprehensive training, the first orders were produced on the new machines to the full satisfaction of the company. Peter Köstlin, Team Leader fir Technical Pre-Production, is enthusiastic about the new machines: “It is simply a lot of fun to work with these new machines and continuously discover new possibilities.”
“Snooze à la Carte” with high quality water beds
The Kobe Carpentry Shop in Reutlingen has been a loyal HOLZ-HER customer for many years. This year, proprietor Michael Kobe and his team purchased a new LUMINA 1380 edgebander. Following an AURIGA 1308 edgebander, a PRO-MASTER 7018 CNC machining center and a CUT 6120 horizontal pressure beam saw this is the fourth machine from the quality manufacturer HOLZ-HER in Nürtingen. Master Carpenter Tobias Ernst is enthusiastic about the new high tech edgebander: The LUMINA has a change-over station to ensure perfectly invisible joints with laser edging as well as with PUR glue without requiring a great amount of time to change attachments.
This three-man shop in Reutlingen has specialized in building water and box spring beds. It has adopted the motto “Snooze à la Carte“. The carpentry shop works with a state-of-the-art measuring system to ensure custom sleeping comfort at the highest level. The components and frames are produced in the company’s own workshop to customer specifications. In addition to high quality beds, in the meantime the carpentry shop is now producing more and more exclusive bedroom furniture and interior finishing elements. The carpentry shop’s products can be viewed in their exhibition rooms in Böblingen and Reutlingen.
- Photos: Kobe Carpentry Shop
Complete, integrated solutions from HOLZ-HER
Pulsar is a marketing agency seated in Dubai, and offering its customers holistic marketing concepts. The agency was founded in 2007 and has a regional as well as global presence with production capabilities in Dubai and Beirut.
The basic idea is to create brand awareness to win customers for a brand particularly at the point of sale. For this purpose the agency offers integrated marketing concepts, including everything customers require for comprehensive brand awareness ranging from shop design to digital marketing, events and promotions.
Since February 2016 the company has used machines from the quality manufacturer HOLZ-HER for production of high quality store furniture elements for the point of sale. A STORE-MASTER panel storage system was installed in combination with a DYNESTIC 7521 nesting machine and a TECTRA 6120 pressure beam saw. Moreover the company operates successfully with a PRO-MASTER 7125 5-axis CNC machining center as well as an ACCURA series edgebander from HOLZ-HER for realization of its innovative store concepts.
Among others Nestlé, Unilever, Procter & Gamble, Nike, Burberry and BMW are included among the highly satisfied clientele in the Arabian world, who are impressed by Pulsar’s promise of quality as a result of its investments in high quality production machines.
Caribbean Flair with high performance HOLZ-HER machines
HOLZ-HER’s excellent reputation as a producer of high performance machines has reached the Caribbean. On the small Caribbean Island of Saint-Barthélemy, belonging to the lesser Antilles and included in the French overseas territories, the new production facilities built by the Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has been equipped with machines from the Nürtingen machine manufacturer.
These machines include a PRO-MASTER 7125 Black Edition, distinguished particularly by the mature dynamics of its 5-axis gimbal-mounted head and high tech processor. In addition the carpentry shop now has an AURIGA 1308XL PUR Black Edition with three finishing attachments. A TECTRA 6120 classic pressure beam saw was also installed.
The Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has specialized particularly in production of interior and exterior furniture and is now well equipped with its new HOLZ-HER machine park.
Variable subdivision of standard elements
The Günthner company is a producer of sun protection systems that produce standard products in small series.
[...] The panel materials for the production of wood components are now being processed by Günthner with a complete solution from Holz-Her. In addition to a Tectra 6120 power plate divider and a Dynestic 7516 nesting machine, this system consists of a 5110 storage bin with ETR-300 labeling station, which supplies both dividing machines with plate materials. "We already had a saw and a nesting CNC in front of this combi-system, but they were both over-aged and had to be replaced. The storage and transport of the plates with vacuum lifters were no longer contemporary. Here, we wanted to relieve our employees and bring order to the camp ", reports the managing director. "The separate replacement of the two old machines was not an option. We wanted an overall concept. "
A year ago, Günthner looked at such a concept at another manufacturing company. It was clear right away. So he got to know different manufacturers and invited them to Rottweil to present their design. Finally, the decision to choose Holz-Her is based not only on machine technology but also on a good spatial arrangement of the concept, the regional proximity to the supplier and the conclusive software package. Since the end of May, the plant, which was built parallel to the old machines still working at that time, is in the house. [...]
Flexible panel storage system for maximum Swiss woodworking competency
Alpiger Holzbau AG [Alpiger Woodworking Co.] in Sennwald in the Canton of St. Gallen, Switzerland, is a quality conscious, regionally active, state-of-the-art woodworking company. This future oriented carpentry shop offers holistic solutions in the areas of system construction, facades, windows, roofing and interior finished. Its reputation as a state-of-the-art company results from its use of high quality, ecological materials as well as cooperation with supplies guaranteeing high quality. Individual response to customer wishes, flexible planning and reliable completion are major planks in the business policy of Alpiger Holzbau AG.
The company has been working with HOLZ-HER machines since 2014 and has used a PRO-MASTER 7225 5-axis CNC machining center since that time. In 2016 they installed a TECTRA 6120 power horizontal panel saw in combination with a STORE-MASTER 5110 panel storage system. This panel storage system from HOLZ-HER ensures innovative storage layout and was adapted precisely to the space available in the Alpiger facilities. The integrated panel saw is located on the ground floor with the panels at an elevated level to allow space beneath for other types of use. The manipulator in the panel storage system is controlled by a computer to pick up the proper panels at the upper level and place them on the TECTRA 6120 power pressure beam saw on the ground floor for further processing.
This panel storage system has allowed Alpiger Holzbau AG to increase its capacity while reducing personnel and organizational costs and ensuring optimum use of the available space.
Panel sawing at the professional level
At the Vital Aid Association in Magdeburg, Germany, people with mental disabilities, their families, volunteers and professionals unite to ensure optimum living conditions for everyone, with and without handicaps. The organization has four recognized workshops for the handicapped, offering these people jobs in areas such as woodworking.
For a short time now the Vital Aid Association’s workshop in Magdeburg has appreciated the use of a TECTRA 6120 classic pressure beam saw from HOLZ-HER. The organization considers use of the new horizontal panel saw to be a major step in the direction of automation and work facilitation.
The products produced by the Vital Aid Association in Magdeburg in the area of woodworking are intended for commercial as well a private customers. Among other products they produce slatted frames for the bed industry, stair steps and wooden channels. In addition to their excellent price/benefit ratio, they focus on high quality standards, flexibility and keeping deadlines.
HOLZ-HER wishes the Vital Aid Association in Magdeburg and all its staff members a great deal of success and pleasure with the new TECTRA 6120 classic.
HOLZ-HER product portfolio as central production pillar
Binni is one of the leading companies in the Republic of Kosovo in the area of interior furnishings such as doors and windows. Over 200 employees work in a production area of 18,000 m2 with a capacity of more than 10,000 doors per year as well as over 5,000 kitchens per year. Every year more than 50 new product are introduced on the market. The company exports to various European countries such as Switzerland, Germany, Belgium or the Netherlands.
Binni was founded in 1989 and represents the continuation of a family tradition. The business model combines traditional Albanian wood and furniture craftsmanship with innovative processes and technologies meeting international standards.
This international standard is guaranteed by use of highly varying HOLZ-HER machines, for a majority of the company’s production. In addition to two horizontal panel saws, the company uses a vertical EVOLUTION 7405 CNC and a PRO-MASTER 7125 CNC machining center. A SPRINT 1327 edgebander is also in use. The HOLZ-HER machines are a significant production factor, which have become indispensable for this major company’s everyday business.
The video pictured shows an except from Binni’s image video. The complete video can be view at the Binni Youtube Channel.
Exceptional master piece with HOLZ-HER machines
The Feine Möbel Carpentry and Furniture Making Shop in Guntersblum, Germany, works under the motto “A warm, friendly residential atmosphere is always the interaction of its many parts”. It is therefore important to encourage customers to realize their own ideas and support them with maximum professional competency in designing their home while providing them the necessary craftsmanship.
For perfect production of the furniture, the company uses a CUT series horizontal panel saw, a PRO-MASTER CNC machining center and a SPRINT series edgebander, all from HOLZ-HER. With these HOLZ-HER machines, the carpentry shop has ensured maximum quality and precision for its customers since 2003.
In addition to handling customer orders, the carpentry shop’s junior proprietor used the HOLZ-HER machines to produce his masterpiece for the Master Carpenters’ School in Schwetzingen, Germany. This masterpiece is a piece of corridor furniture made of elm wood with painted finish and printed glass inserts. The original character of this masterpiece resulted in its inclusion in the Online Portal of the Cabinet Maker and Carpentry Shop Magazine, BM Online.
- BM Online | March 8, 2016
Photos: Jörg Beltzner, Schwetzingen
Read complete article at BM Online
